A.C.M. Laboratory Pty LtdCalibration of measuring equipment and associated services |
 |
We sell the following measuring equipment manufactured by Mitutoyo.
Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
WYLER AG Switzerland is the leading manufacturer of precision spirit levels, Clinometers, electronic inclination measuring instruments, inclination sensors and software for inclination measurement. Please visit Wyler website for more information or contact us with any enquiries regarding your measuring issues and let us recommend the best solution, and we offer very competitive prices and for most of levels we supply NATA calibration report with free of charge.
High Precision Electronic Inclination Measuring Sensors, inclination sensors with high long-term stability
Electronic Inclinometers, Digital Inclinometers, Electronic Digital Levels, Electronic Analogue Levels, High Precision Inclinometers, Digital Levels
Horizontal Spirit Levels, Frame Spirit Levels, Tubular Spirit Levels, Circular Levels, Clinometers
We sell the following measuring equipment manufactured by Bareiss.
Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
We sell the following measuring equipment manufactured by TESA.
Please contact us with any enquiries regarding your measuring issues and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
Max Levy Autograph of Philadelphia, manufacturer of precision English/Metric Microrules.
We sell the following measuring equipment manufactured by Starrett.
Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
We sell the following measuring equipment manufactured by PZA.
Please contact us with any enquiries regarding your measuring issues and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
We sell the following measuring equipment manufactured by Federal.
Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
We sell the following dimensional measuring equipment manufactured by Trimos.
Please contact us with any enquiries regarding your measuring issues and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
We sell the following measuring equipment manufactured by CDI.
Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
We sell all OHAUS products and some increment details as below . Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
| Defender® 5000 Washdown Bench Scales | Defender® 5000 Standard |
| Defender® 3000 Stainless Steel | Defender® 3000 |
| Defender® 2000 | Catapult® 5000 7&5 4DBMF |
| SD Series |
| Ranger® 3000 Count |
| Ranger® 7000 | Ranger® 3000 |
| Valor® 7000 | Valor® 4000 |
| Valor® 3000 | Valor® 2000 |
| Valor® 1000 | FD Series |
| Catapult® 1000 |

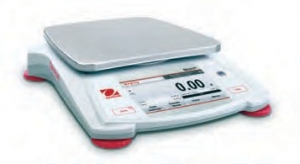

| Scout® Touch | Scout® General |
| Scout® Education | Scout® Jewellery |
| Navigator® NV | Navigator® NVT |
| Traveler | CX Series |
| CR Series | Luggage Scale |
We can supply OIML E2, F1, F2, M1, M2, M3 mass.Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
| E2 Mass | range: 1mg – 2kg |
| F1 Mass | range: 1mg – 20kg |
| F2 Mass | range: 1mg – 20kg |
| M1 Mass | range: 1kg – 100kg |
| M2 Mass | range: 1kg – 100kg |
| M3 Mass | range: 1kg – 100kg |
We sell all Adam products and some increment details as below . Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
| Eclipse® Analytical Balances | Nimbus® Analytical Balances |
| Solis Analytical and Semi-Micro Balances |
| Astro® Compact Scales | CB Compact Balances |
| Core® Portable Compact Balances | CPWplus Bench and Floor Scales |
| CQT Grain Scale | Dune® Portable Compact Balances |
| Highland® Portable Precision Balances |
| CBD Bench Counting Scales | Cruiser Bench Checkweighing Scales |
| Cruiser Bench Counting Scales | GC Counting Indicator |
| GFC Floor Counting Scales |
| CPWplus Bench and Floor Scales | GFC Floor Counting Scales |
| GFK Floor Checkweighing Scales | Warrior® Washdown Scales |
| IHS Crane Scales | LHS Crane Scales |
| SHS Crane Scales |
| AZextra Price-Computing Retail Scales | GBK Bench Checkweighing Scales |
| GFK Floor Checkweighing Scales | GK Indicator |
| PT Platforms | WBW Washdown Scales |
We sell all Metrology products and some increment details as below . Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
| METRIC | INCH | Individual |
| Hardened Steel Set | Hardened Steel Set | Hardened Steel |
| Tungsten Steel Set | Tungsten Steel Set | Tungsten Steel |
| Ceramic Set | Ceramic Set | Ceramic |
| Pin Gauge(Sets) | Pin Gauge(Individual) | Ceramic Pin Gauge(Individual) |
| Granite Surface Plate | Granite Tri-square Master |
| Granite Four Face Square Master | Granite Straight Edge Master |
| Granite Parallel Master | Granite V-block Master |
We sell the following measuring equipment manufactured by Mitutoyo.
Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
We sell all MEASUMAX products and some increment details as below . Please contact us with any enquiries regarding your measuring problems and let us recommend a solution, and we offer very competitive prices when purchased in conjunction with our calibration service.
MEASUMAX Precision Squares
| Features: • Hardened and polished spring steel blades • True right angle inside and outside |
||||
| Specifications: | ||||
| CODE | 70-644 | 70-645 | 70-646 | 70-647 |
| BLADE | 75mm | 100mm | 150mm | 225mm |
| STOCK | 60x8mm | 75x11mm | 100x14mm | 140x16mm |
MEASUMAX Spring Calipers & Scribers
| CODE | 70-630 | 70-631 |
| Name | Bent Tail Scriber | Pocket Scriber with Magnetic Tool |
| SIZE | 190mm | 150mm |
| TYPE | Bent Tail | |
| REPLACEMENT TIPS | – | 70-6315 |
MEASUMAX Telescopic & Feeler Gauges
| Features: • Thickness range 0.03 – 1.0mm • High grade tool steel • Hardened tempered & polished |
||
| Specifications: | ||
| CODE | 70-616 | 70-618 |
| Name | Feeler Gauge Set 0.03-1.0mm | Telescopic Gauge Set 8-150mm |
| Range | 0.03 – 1.0mm | 8-150mm |
MEASUMAX Threading & Radius Gauges
| CODE | 70-610 | 70-612 | 70-614 | 70-615 |
| Name | Screw Pitch Gauge | Screw Cutting Gauge | Radius Gauge Set | Radius Gauge Set |
| NO. | 28×55°, 24×60° Blades | 4 Thread Forms | 17 convex & 17 concave Blades | 16convex & 16 concave Blades |
| RANGE | 55° 4, 4.1/2, 5, 6. 7, 8, 9, 10, 11, 12, 13, 14, 16, 18,19, 20, 22, 24, 25, 26, 29, 30, 32, 36, 40, 48, 60, 62, TPI | 55°, 60°, 47.5°, 14.5° | 1-7mm by steps of 0.25mm from 1-3mm and by steps of 0.5 from 3.5-7mm |
7.5-15mm by steps of 0.5mm |
| RANGE | 60° 0.4, 0.45, 0.5, 0.6,0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0 PITCH |
MEASUMAX Steel Rules & Degree Protractor
| Features: • Easy to read graduations • Metric graduations on one side and imperial graduations on the reverse side • Rust and wear resistant for durability • Made of hardened & tempered stainless steel with satin chrome finish • Supplied in plastic pouch |
|||
| Specifications: | |||
| CODE | SIZE | RULE GRADUATIONS | DIMENSIONS |
| 70-601 | 0-180° | 0-100mm | 150mm |
| 70-620 | 150mm/6″ | 1mm,0.5mm/32nds & 64ths | 150x15x0.8mm |
| 70-621 | 300mm/12″ | 1mm,0.5mm/32nds & 64ths | 300x25x1mm |
| 70-622 | 600mm/24″ | 1mm,0.5mm/32nds & 64ths | 600x30x1mm |
| 70-623 | 1000mm/40″ | 1mm,0.5mm/32nds & 64ths | 1000x35x1.5mm |
MEASUMAX Combination Sets
| Features: • High Accuracy 4 piece set. Open side type • Cast iron construction and finished ground • Engraved graduations on protractor • Satin Chrome Rule: 12″/300mm rule (35-200), 300mm rule (35-200A) • Foam lined plastic case with metal clips. |
|||
| Specifications: | |||
| CODE | 35-200 | 35-2005 | 35-200A |
| RULE | 12″/300mm | 12″/300mm | 300mm |
| PIECES | 4 | 4 | 4 |
MEASUMAX Bevel Protractor
| Features: • Precision bevel protractor suitable for the measurement of angles on jigs, machined components and toolmakers moulds • Supplied with magnifying lens for easy readings of the vernier scale • Stainless steel rule and chrome plated body • Fine adjustment • Comes in plastic foam lined case |
||
| Specifications: | ||
| CODE | 35-201 | 35-2015 |
| RANGE | 0-360° | 0-360° |
| INDEX VALUE | 5′ | 5′ |
| ACCURACY | ±5′ | ±5′ |
MEASUMAX Digital Protractor
| Features: • Full 360° range (90° x 4) • Easy to read LCD screen that remains upright at all times • Aluminium frame • Resolution:0.1° • Hold reading function |
|
| Specifications: | |
| CODE | 35-204 |
| RESOLUTION | 0.01mm |
| RANGE | 360°(4×90°) |
MEASUMAX 11 Pce Gauge Block Set
| Features: • With high accuracy & lower surface roughness • Excellent wring performance – High tolerance stability • All blocks meet ISO/JIS & DIN Standards • With round and straight chamfered on each corner of gauge blocks • *Nata Certification not included |
|
| Specifications | |
| CODE | 37-265 |
| NO. BLOCKS | 11 |
| GRADE | 1 |
| STD LENGTH SERIES(mm) | 25,27.5,30.1,32.7,35.3, 37.9,40,42.6,45.2,47.8,50 |
| NOTE | DIN 861 |
MEASUMAX 83 Pce Gauge Block Set
| Features: • With high accuracy & lower surface roughness • Better wring performance • High tolerance stability • With round and straight chamfers on each corner of gauge blocks |
|
| Specifications: | |
| CODE | 37-260 |
| NO. BLOCKS | 83 |
| GRADE | 2 |
| STD LENGTH SERIES(mm) | 0.5 |
| INCREMENT(mm) | – |
| PIECES | 1 |
MEASUMAX Precision Frame Level
| Description: The Measumax Precision Machine Frame Level can be used to measure straightness and parallelism of the guide ways of various kinds of machine tools and other equipment, and to inspect the horizontal and vertical positions after the installation of equipment. The measuring surfaces are both flat and “V” and are lapped and scraped for accuracy. The “V” shaped base allows the level to be used on cylinders Manufactured from Seasoned Cast Iron. The Measumax Precision machine frame level is fitted with 2 adjustable vials. The main vial is marked with 9 graduation lines each side of the bubble for greater range and accuracy. |
|
| Specifications: | |
| CODE | 35-208 |
| SIZE | 200mm |
| ACCURACY | 0.02mm/Mtr |
MEASUMAX Precision Machine Levels
| Description: The Measumax Precision Machine Level can be used to measure straightness and parallelism of the guide ways of various kinds of machine tools and other equipment, and to inspect the horizontal position after the installation of equipment. The measuring surfaces are both flat and “V” and are lapped and scraped for accuracy. The “V” shaped base allows the level to be used on cylinders Manufactured from Seasoned Cast Iron. The Measumax Precision machine level is fitted with 2 adjustable vials. The main vial is marked with 9 graduation lines each side of the bubble for greater range and accuracy. |
||
| Specifications: | ||
| CODE | 32-205 | 35-207 |
| SIZE | 200mm | 300mm |
| ACCURACY | 0.02mm/Mtr | 0.02mm/Mtr |
MEASUMAX Dial Bore Gauge
| Features: • Suitable for the inspection of deep internal diameters • Moveable anvil on one side with interchangeable insert type anvils on the other side (above 35mm) • Self aligning mechanism by centering plate • Easy anvil replacement • Dial face cover supplied • Dial indicator stem 8mm • For imperial reading or data output the 34-220 can be used instead of the dial indicator supplied |
|||||
| Specifications: | |||||
| CODE | RANGE | GRADUATION | READABLE DEPTH | ANVILS | WASHERS |
| 34-226 | 50-160mm | 0.01mm | 150mm | 11 | 3 |
| 34-2265 | 2-6″ | 0.001″ | 6″ | 11 | 3 |
| 34-229 | 18-35mm | 0.01mm | 125mm | 9 | 2 |
| 34-230 | 35-50mm | 0.01mm | 125mm | 9 | 2 |
| 34-233 | 6″-10″ | 0.001″ | 2000mm | 6 | 2 |
MEASUMAX Digital Single Column Height Gauge
| Features: • Power ON/OFF • Zero at any position • Metric/Imperial conversion • Carbide tipped scriber • Large base and thick column for rigidity, lapped for flatness • Stainless steel • Fine adjustment carriage. • Engage and disengage hand wheel • Supplied in foam packing with cardboard sleeve |
||
| Specifications: | ||
| CODE | 36-2105 | 36-2106 |
| RANGE | 0-300mm/12″ | 0-600mm/24″ |
| RESOLUTION | 0.01/.0005″ | 0.01/.0005″ |
| ACCURACY | ±0.04mm | ±0.05mm |
MEASUMAX Digital Caliper Gauges – External
| Features: • Digital and analogue display on LCD • Function include Power, Absolute & Incremental • Metric/Imperial conversion • Remembers the data of Max. and Min. or hold data • Direct RS232 Output (Uses cable 40-401) • Uses CR2032 Battery. Auto Power off • Accuracy 0.03mm • Tolerance set |
|
| Specifications: | |
| CODE | 33-239 |
| RANGE | 0-20mm/0.0-0.8″ |
| GRADUATIONS | 0.01mm/0.0005″ |
MEASUMAX Digital Caliper Gauges – Internal
| Features: • Digital and analogue display on LCD • Function include Power, Absolute & Incremental • Metric/Imperial conversion • Remembers the data of Max. and Min or hold data • Direct RS232 Output (Uses cable 40-401) • Uses CR2032 Battery. Auto power off • Accuracy 0.03mm • Tolerance set |
||
| Specifications: | ||
| CODE | 33-244 | 33-245 |
| RANGE | 10-30mm/0.4-1.2″ | 30-50mm/1.2-2.0″ |
| GRADUATIONS | 0.01mm/0.0005″ | 0.01mm/0.0005″ |
MEASUMAX Dial Thickness Gauge
| Features: • The dial thickness gauges are used to measure the thickness of paper, leather, rubber, fabric, metal plate, glass and plastic plate etc • Standard steel contact point and anvil ø10mm Diameter • Compact design • Ideally suited for quick inspection |
|
| Specifications: | |
| CODE | 34-506 |
| RANGE | 0-10mm |
| GRADUATION | 0.01mm |
MEASUMAX Dial Indicator Holders
| Features: • Accepts all MX Dial Test Indicators • Dovetail Slide Clamp |
||
| Specifications: | ||
| CODE | 38-437 | 38-438 |
| SHANK DIAMETER | 1/4″ | 1/4″ |
| REACH | 70mm | 76mm |
MEASUMAX Magnetic Bases
| Features • Accepts all MX Dial Indicators • V-Base for placing on round surfaces • On/Off lever releases magnet • No risk of marring polished surfaces • Mounts test indicators with 1/4″ spigot • On/Off switch conveniently located • One lock clamping |
||||
| Specifications | ||||
| CODE | 38-430 | 38-435 | 38-4351 | 38-436 |
| BASE SIZE | 36x30x35mm | 62x50x55mm | 62x50x55mm | 70x50x55mm |
| HOLDING POWER | 17kg | 80kg | 80kg | 85kg |
| MAIN ROD | ø20x70mm | ø12x173mm | ø16 x 200mm | ø18x150mm |
| SUB ROD | ø20x65mm | ø10x162mm | ø16 x 200mm | ø14x140mm |
| REACH | 130mm | 300mm | 335mm | 330mm |
| WEIGHT | 0.58kg | 1.50kg | 1.60kg | 1.7kg |
MEASUMAX Dial Test Indicator – Pocket Type -1.6mm to +1.6mm
| Features: • Large measuring range – Jewel movement • Measuring in both directions directions • Adjustable bezel face • Sealed Bezel to keep out dirt and coolant • Dovetail Slide for mounting rod |
|
| Specifications: | |
| CODE | 34-218 |
| RANGE | -1.6mm to +1.6mm |
| RESOLUTION | 0.01mm |
| ACCURACY | 25um |
MEASUMAX Dial Test Indicator – Economy
| Features: • The dial test indicator is ideally suited for all kinds of comparative measurements in the workshop and inspection room • It also can be used together with machine tools, apparatus and other measuring devices – Steel ball end • Jewel movement – measuring in both directions |
|||
| Specifications: | |||
| CODE | 34-217 | 34-2171 | 34-224 |
| RANGE | 0-0.8mm | 0-0.03″ | 0-0.8mm |
| GRADUATIONS | 0.01mm | 0.0005″ | 0.01mm |
MEASUMAX Digital Dial & Dial Test Indicators
| Features: • Manual power On/Off • Zero setting at any position • Metric/Imperial system conversion at any position • With data output interface (cable 40-4061) • Max speed 1.5m/sec • Power 1.5V, SR44 battery |
|||
| Specifications: | |||
| CODE | RANGE | RESOLUTION | ACCURACY |
| 34-2205 | 12.7mm/0.5″ | 0.01mm/0.0005″ | 0.009mm |
| 34-221 | 50mm/2″ | 0.01mm/0.0005″ | 0.009mm |
MEASUMAX Long Range Dial Indicators
| Features: • Steel Body with black & white steel bezel • Shock proof movement • Jeweled movement • Steel back with lug • Lifting screw and revolution counter • Supplied in wooden case |
||
| Specifications: | ||
| CODE | 34-510 | 34-5105 |
| RANGE | 0-50mm | 0-80mm |
| GRADUATIONS | 0.01mm | 0.01mm |
MEASUMAX Precision Dial Indicators – Jewel Movement
| Features: • Smooth 6 jewel movement • In-out tolerance maker • Flat glass • Flat back and back lug supplied • Jeweled bearing construction, shockproof • Individual serial numbers with corresponding calibration certificate • Supplied in foam lined plastic case |
|||
| Specifications | |||
| CODE | 34-213 | 34-214 | 34-215 |
| RANGE | 0-5mm | 0-10mm | 0-30mm |
| GRADUATIONS | 0.01mm | 0.01mm | 0.01mm |
MEASUMAX Dial Indicators – Economy
| Features: • Face ø58mm – Back plate mounting lug • Smooth movement • In-out tolerance marker • Supplied in foam lined plastic case with calibration certificate |
||
| Specifications | ||
| CODE | 34-211 | 34-212 |
| RANGE | 0-10mm | 0-1″ |
| GRADUATIONS | 0.01mm | 0.001″ |
MEASUMAX Centring Dial Indicator
| Features: • Quick and accurate centering in boring and milling set-up • Operates at any angle from horizontal to vertical. • Internal to external by use of the 7 feeler probes supplied • Packed in wooden box |
|
| Specifications: | |
| CODE | 34-515 |
| RANGE | 0-3mm |
| GRADUATIONS | 0.01mm |
MEASUMAX Digital Caliper – Large 600-1500mm
| Features: • Accuracy DIN862 • Large clear LCD On/Off, Metric/Imperial.Zero switches – Zero setting at any position • Hardened S/S mechanism with patented technology • Splash proof electronic unit, measurement tracking speed 40″/sec • Supplied in wooden case • 4 Way Measurement |
||
| Specifications | ||
| CODE | 31-188 | 31-1885 |
| SIZE | 600mm/24″ | 1000mm/40″ |
| GRADUATIONS | 0.01mm/0.0005″ | 0.01mm/0.0005″ |
| ACCURACY | ±0.05 | ±0.15mm |
| LEG | 125mm | 150mm |
| STYLE | 4 way | 2 Way |
MEASUMAX Digital Caliper Ip54 Spalsh Proof
| Features: • Accuracy DIN862. • Large clear LCD on/off, Metric/Imperial, Zero switches-Zero setting at any position ABS/INC • Hardened S/S mechanism with patented technology • Four way measurement • Splash proof electronic unit, measurement tracking speed 40″/sec • Supplied in fitted blow mould case |
|||
| Specifications: | |||
| CODE | SIZE | GRADUATIONS | STYLE |
| 31-180 | 150mm/6″ | 0.01mm/0.0005″ | 4way |
| 31-181 | 200mm/8″ | 0.01mm/0.0005″ | 4way |
| 31-182 | 300mm/12″ | 0.01mm/0.0005″ | 4way |
MEASUMAX Digital Caliper Ip67 Coolant Proof
| Features: • New ABSOLUTE measuring system with memory hold and ABS/INC • Fully protected against the penetration of liquids • IP-67 prevents dust, water or oil from entering the caliper through effective encapsulation of the main parts • Large clear screen display – Metric/Imperial conversions at any position, Zero switches at any position. The memory hold function allows for the readinf to be kept even after the unit is switched off. • Manual switch off • Supplied in fitted blow mould case |
|||
| Specifications | |||
| CODE | SIZE | GRADUATIONS | STYLE |
| 31-1851 | 150mm/6″ | 0.01mm/0.0005″ | 4way |
| 31-1861 | 200mm/8″ | 0.01mm/0.0005″ | 4way |
| 31-1871 | 300mm/12″ | 0.01mm/0.0005″ | 4way |
MEASUMAX Gear Tooth Vernier
| Features: • One of the benefits using a caliper is that the gear does not have to be removed from the machine • The caliper consists of two adjustable verniers, that reference two dimensions on the gear and provide a measurement • Vertical scale: Measures the depth of the teeth from the top of the pitch line • Horizontal Scale: This is used to measure the Chordal Thickness of the gear tooth |
|
| Specifications: | |
| CODE | 33-234 |
| RANGE | 1-26Module |
| GRADUATIONS | 0.02mm |
| ACCURACY | ±0.02mm |
MEASUMAX Vernier Calipers – Large 450-2000mm
| Features: • Clear graduations – Metric/Imperial graduations • Mono-block design • Long Jaw style |
|||
| Specifications: | |||
| CODE | RANGE | GRADUATIONS | ACCURACY |
| 33-197 | 450mm/18″ | 0.02mm/0.001″ | ±0.04mm |
| 33-1985 | 600mm/24″ | 0.02mm/0.001″ | ±0.05mm |
| 33-199 | 1000mm/40″ | 0.02mm/0.001″ | ±0.07mm |
MEASUMAX Vernier Calipers – With Fine Adjuster
| Features: • Mono-block vernier • With fine adjustment • Made of stainless steel • 4-Way measuring • Supplied in foam lined plastic case • Accuracy ±0.03mm |
|||
| Specifications: | |||
| CODE | 32-1945 | 32-1946 | 32-1947 |
| RANGE | 0-130mm/5″ | 0-180mm/7″ | 0-280mm/11″ |
| GRADUATIONS | 0.02mm/0.001″ | 0.02mm/0.001″ | 0.02mm/0.001″ |
| ACCURACY | ±0.03mm | ±0.03mm | ±0.05mm |
MEASUMAX Vernier Caliper – Normal Screw Lock
| Features: • Metric/Imperial scale • Mono-block vernier • 4-Way measurement • Made of hardened stainless steel • Accuracy ±0.03mm |
||
| Specifications: | ||
| CODE | 32-194 | 32-1941 |
| RANGE | 0-150mm | 0-200mm/8″ |
| GRADUATIONS | 0.02mm | 0.02mm/0.001″ |
| ACCURACY | ±0.03mm | ±0.05mm |
MEASUMAX Indicator Snap Micrometer
| Features: • Protection level IP54 • 10mm diameter carbide measuring faces • Direct GO/NOGO judgment for mass produced parts • Measuring force 5-10N • Painted frame • Carbide tipped anvils, Flatness 0.0008mm • Indicator rang ±0.04mm • Indicator resolution 0.001mm |
||
| Specifications: | ||
| CODE | 10-132 | 10-133 |
| RANGE | 0-25mm | 25-50mm |
| ACCURACY | 0.001mm | 0.001mm |
MEASUMAX 3 Point Micrometers – Wide Range 50 -150mm, & 4-6
| Features: • Carbide-tipped contact points • Large range capacity • Measurements can be taken closer to the bottom of a blind bore, and can be taken in a deep hole with an extension • Resolution: 0.01mm (metric) • 0.0001″ (imperial) • Supplied in deluxe foam lined aluminum case |
||
| Specifications: | ||
| CODE | 25-164 | 25-165 |
| RANGE | 4-6″ | 100-150mm |
| ACCURACY | 0.0002″ | 0.005mm |
| SETTING RING | 4″ | 100mm |
| A | 0.5mm | 0.5mm |
| L | 230mm | 230mm |
MEASUMAX Digital Bore Micrometer Set 12-20mm
| Features: • Carbide tipped contact points • Protection level IP54 Criterion DIN40050/IEC529 • RS232 data output (Cable 40-400) • Metric/Inch conversion • Sets supplied with setting rings • Supplied in deluxe foam lined aluminum case |
|
| pecifications: | |
| CODE | 25-1615 |
| RANGE | 12-20mm/0.5-0.8″ |
| ACCURACY | 0.004mm |
| INDIVIDUAL RANGE | 12-16mm,16-20mm |
| SETTING RINGS | ø16mm |
| EXTENSION RODS | 150mm |
MEASUMAX 3 Point Micrometers Sets – 6mm To 100mm
| Features • Carbide tipped contact points • Measurements can be taken closer to the bottom of a blind bore, and can be taken in a deep hole with an extension • Supplied in deluxe foam lined aluminum case |
||||
| Specifications: | ||||
| CODE | 25-160 | 25-161 | 25-162 | 25-163 |
| RANGE | 6-12mm | 12-20mm | 20-50mm | 50-100mm |
| ACCURACY | 0.004mm | 0.004mm | 0.004mm | 0.005mm |
| INDIVIDUAL RANGE | 6-8,8-10,10-12mm | 12-16,16-20mm | 20-25,25-30,30-40,40-50mm | 50-63,62-75,75-88,87-100mm |
| SETTING RINGS | ø6,8,10mm | ø16mm | ø25,40mm | ø62,87mm |
| EXTENSION RODS | 100mm | 150mm | 150mm | 150mm |
MEASUMAX Dial Bore Gauge Set 50-160mm
| Features: • Suitable for the inspection of deep internal diameters • Moveable anvil on one side with interchangeable insert type anvils on the other side (above 35mm) • Self aligning mechanism by centering plate • Easy anvil replacement • Dial face cover supplied • Dial indicator stem 8mm • For imperial reading or data output the 34-220 can be used instead of the dial indicator supplied |
|||||
| Specifications | |||||
| CODE | RANGE | GRADUATION | READABLE DEPTH | ANVILS | WASHERS |
| 34-226 | 50-160mm | 0.01mm | 150mm | 11 | 3 |
| 34-2265 | 2-6″ | 0.001″ | 6″ | 11 | 3 |
| 34-229 | 18-35mm | 0.01mm | 125mm | 9 | 2 |
| 34-230 | 35-50mm | 0.01mm | 125mm | 9 | 2 |
| 34-233 | 6″-10″ | 0.001″ | 2000mm | 6 | 2 |
MEASUMAX Depth Micrometers – Metric
| Features: • Hi accuracy interchangeable rods with hardened and micro lapped flat anvils, provide a wide measuring range • The interchangeable rods are held securely under the top ratchet section and have individual adjustment for resetting if required • The base is hardened, ground and lapped for accuracy • Ratchet stop for exact repetitive readings • Positive locking clamp • Resolution: Metric 0.01mm |
||
| Specifications: | ||
| CODE | 22-145 | 22-146 |
| RANGE | 0-50mm | 0-100mm |
| ACCURACY | ±0.004mm | ±0.005mm |
| RODS | 2 | 4 |
MEASUMAX Dial Depth Gauge 0-100mm
| Features • Equipped with a shock-proof dial indicator • With interchangeable rods (spherical head) for wide measuring range |
|
| Specifications: | |
| CODE | 34-225 |
| RANGE | 0-100mm |
| DIAL RANGE | 0-10mm |
| ACCURACY | 0.012mm |
| RESOLUTION | 0.01mm |
MEASUMAX Vernier Depth Gauge
| Features: • Mono block stainless steel construction • With screw at the back of the far end of the caliper bar • Clear laser engrave graduations • Supplied in plastic case |
||
| Specifications: | ||
| CODE | 33-236 | 33-2365 |
| RANGE | 0-300mm | 0-300mm |
| ACCURACY | ±0.06mm | ±0.06mm |
| GRADUATIONS | 0.05mm | 0.05mm |
MEASUMAX Caliper Jaw Type Inside Micrometer
| Features: • Micro-fine graduations on satin chrome finish • Carbide measuring faces • Jaws made from high grade tool steel • Standards setting ring supplied • Accuracy: 0.005mm |
||
| Specifications: | ||
| CODE | 25-134 | 25-135 |
| RANGE | 5-30 mm | 25-50 mm |
| RESOLUTION | 0.01 mm | 0.01 mm |
MEASUMAX Inside Micrometers Rod Type
| Features: • The anvil and the spindle are hardened and precision ground • Spindle thread is hardened and precision ground • Each interchangeable rod is marked with the range • Adjustment can be made to each of the extension rods • Resolution: 0.01mm. Accuracy: Metric(6+L/50)µm • (L=Max.measuring length) |
||
| Specifications: | ||
| CODE | 23-148 | 23-149 |
| RANGE | 25-50mm | 50-300mm |
| EXTENSION RODS | 2 | 10 |
MEASUMAX Inside Micrometer – Tube Type – Small
| Features: • The combining of extension rods provide a wide measuring range • Supplied with a standard caliper gauge foe zero setting • Carbide measuring faces. Positive locking clamp • Diameter of extension rods: ø15.5mm • Accuracy: Metric ±(3+n+L/50)um. (n=number of rods L= maximum measuring length |
|||
| Specifications: | |||
| CODE | 25-1491 | 25-1495 | 25-150 |
| RANGE | 50-300mm | 2-12″ | 50-500mm |
| HEAD | 50-63mm | 2-2.5″ | 50-63mm |
| RESOLUTION | 0.01mm | 0.001″ | 0.01mm |
| EXTENSION RODS | 13,25,50(2pces), 100mm | 0.5″,1″,2″(2pce),4″ | 13,25,50(2pce),100,200mm |
MEASUMAX Inside Micrometer Tube Type – Large Metric
| Features: • The anvil and the spindle are hardened and precision ground • Spindle thread is hardened and precision ground • Carbide measuring faces • Each interchangeable rod is marked with the range • Large diameter rod for rigidity • Resolution: 0.01mm • Accuracy : Metric (3+n+L/50)µm (L=Max. measuring length, n=number of rods) |
|
| Specifications: | |
| CODE | 25-155 |
| RANGE | 100-1300mm |
| MICROMETER HEAD | 100-125mm |
| HEAD TRAVEL | 25mm |
| RESOLUTION | 0.01mm |
| EXTENSION ROBS | 25,50,100,200,2x400mm |
| ROD DIA | 22mm |
| ACCURACY | (3+n+L/50)µm |
MEASUMAX Micrometer Set 1000-1200mm
| Features: • Wide measuring range with adjustable anvil. High accuracy standard collars enable a reading that does not have to be reset when changing collars • Standard collars: 50mm & 100mm(micrometers over 1000mm) • Carbide measuring faces. Flatness 0.0008mm • Pipe combined frame for light weight and high rigidity • Resolution 0.01mm – Setting standards supplied |
|
| Specifications | |
| CODE | 20-420 |
| RANGE | 1000-1200mm |
| STANDARD COLLARS | 50mm, 100mm |
| ACCURACY | 0.020mm |
MEASUMAX Interchangeable Anvil Micrometer Sets To 300-1000m
| Features: • Wide measuring range with interchangeable anvils enables readings that do not have to be reset when changing anvils. Setting standards supplied • Carbide measuring faces, Flatness 0.0008mm • Pipe combined frame for light weight and high rigidity • Resolution 0.01mm |
||||
| Specifications: | ||||
| CODE | RANGE | ACCURACY | ANVILS | STANDARD |
| 20-340 | 300-400mm | 0.011mm | 4 | 2 |
| 20-350 | 400-500mm | 0.013mm | 4 | 2 |
| 20-360 | 500-600mm | 0.015mm | 4 | 2 |
| 20-370 | 600-700mm | 0.016mm | 4 | 2 |
| 20-380 | 700-800mm | 0.018mm | 4 | 2 |
| 20-390 | 800-900mm | 0.020mm | 4 | 2 |
| 20-391 | 900-1000mm | 0.020mm | 4 | 2 |
MEASUMAX Interchangeable Anvil Micrometer Sets To 300mm
| Features: • Baked enamel blue cast frame – Resolution 0.01mm • Interchangeable anvils fitted with adjusting collar to set the overall measurement • Carbide measuring faces, Flatness 0.0008mm • Micro-fine clear graduations on satin chrome finish • Ratchet thimble for exact repetitive readings • Setting standards supplied and adjustment available on all extension rods |
||
| Specifications: | ||
| CODE | 20-120 | 20-123 |
| RANGE | 100-200mm | 200-300mm |
| ACCURACY | 0.007mm | 0.009mm |
| ANVILS | 4 | 4 |
| STANDARD | 4 | 4 |
MEASUMAX Micrometer Sets – Imperial
| Features: • Vernier scales graduations • Carbide tipped anvils. Flatness 0.0008mm • Micro-fine clear graduations on satin chrome finish • Deluxe blow mould case (20-116) • Deluxe foam lined aluminum case (20-117) • Painted cast frame • Resolution:0.0001″ • Supplied with setting standards |
|||
| Specifications: | |||
| CODE | 20-116 | 20-117 | |
| RANGE | 0-4″ | 0-6″ | |
| ACCURACY | 0.0001″ | 0.0001″ | |
| QTY IN SET | 4pce | 6pce | |
MEASUMAX Micrometer Sets – Metric
| Features: • Easy adjustment for recalibrating with ratchet spanner • Carbide tipped anvils, Flatness 0.0008mm • Micro-fine clear graduations on satin chrome finish • Painted cast frame • Resolution:0.01mm |
||||
| Specifications: | ||||
| CODE | 20-111 | 20-114 | 20-115 | 20-118 |
| RANGE | 0-75mm | 0-100mm | 0-150mm | 150-300mm |
| ACCURACY | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| QTY IN SET | 3pce | 4pce | 6pce | 6pce |
MEASUMAX Micrometer Outside-metric
| Features • Carbide measuring faces – Painted cast frame • Micro-fine clear graduations on satin chrome finish • Measuring face 6.5mm, Flatness 0.0008mm • Ratchet stop for exact repetitive readings • Includes deluxe foam lined plastic case and wrench • Resolution 0.01mm • Supplied with setting standards |
||||
| CODE | 10-102 | 10-105 | 10-107 | 10-110 |
| RANGE | 0-25mm | 25-50mm | 50-75mm | 75-100mm |
| ACCURACY | 0.004mm | 0.004mm | 0.005mm | 0.005mm |
MEASUMAX Micrometer Outside- Imperial
| Features: • Carbide measuring faces • Measuring face 6.5mm, Flatness 0.0008mm • Micro-fine clear graduations on satin chrome finish • Ratchet stop for exact repetitive readings • Includes deluxe foam lined plastic case and wrench • Resolution 0.0001″ – Vernier scale • Painted cast frame • Supplied with setting standards |
|||
| CODE | 10-101 | 10-103 | 10-106 |
| RANGE | 0-1″ | 1-2″ | 2-3″ |
| ACCURACY | 0.004mm | 0.004mm | 0.005mm |
MEASUMAX Outside Micrometers 100-300mm
| Features: • Carbide measuring faces – Painted cast frame • Micro-fine clear graduations on satin chrome finish • Measuring face 6.5mm, Flatness 0.0008mm • Ratchet stop for exact repetitive readings • Includes deluxe foam lined plastic case and wrench • Resolution 0.01mm • Supplied with setting standards |
|||
| Specifications: | |||
| CODE | RANGE | ACCURACY | |
| 12-315 | 100-125mm | 0.006mm | |
| 12-316 | 125-150mm | 0.006mm | |
| 12-317 | 150-175mm | 0.007mm | |
Digital Outside Mic. 0-25mm/0-1″
| Features: • Large LCD for easy reading • Metric-imperial conversion and zero setting keys • Friction thimble for easy one hand use • Painted frame. Carbide measuring faces • Resolution:0.001mm/0.0005″ |
|||
| Specifications: | |||
| CODE | RANGE | ACCURACY | RESOLUTION |
| 10-124 | 0-25mm/0-1″ | ±0.002mm | 0.001mm/0.0005″ |
MEASUMAX Digital 4 Way Outside Micrometer
| Features: • Protected to IP54 specifications • 2 large LCDs for easy reading R/H or L/H • Displays can be changed to read in any direction • Metric-imperial conversion and zero setting keys • Direct RS-232 output (uses cable 40-400) • Friction thimble for easy one hand use • Chrome plated frame. Carbide measuring faces • Resolution: 0.001mm/0.0005″ • Criterion: DIN863/1, DIN40050/IEC529 |
||
| Specifications: | ||
| CODE | 10-1251 | 10-1261 |
| RANGE | 0-30mm/0-1.2″ | 25-55mm/1-2.2″ |
| ACCURACY | 0.004mm/0.00016″ | 0.004mm/0.00016″ |
MEASUMAX Digital Micrometer IP65
| Features: • Protected to IP65 specifications • Large LCD for easy reading • Metric conversion and zero setting keys • Carbide measuring faces, Flatness 0.0008mm • Abs, and inc. conversion. Power Origin Auto off • Origin data set • Ratchet thimble • Chrome-plated frame • Screen Resolution: 0.001mm/0.0005″ • 3V CR2032 Lithium Battery for long battery life |
|||
| Specifications: | |||
| CODE | 10-1245 | ||
| RANGE | 0-25mm/0-1″ | ||
| ACCURACY | ±0.001mm | ||
| SPINDLE RESOLUTION | 0.01mm | ||
| SCREEN RESOLUTION | 0.001mm/0.0005″ | ||
MEASUMAX Screw Thread Micrometers
| Features: • V-shaped and cone-shaped anvils (interchangeable) are supplied. Dimensions of anvil-tail: ø5x15mm • Ratchet friction thimble • Painted frame, rotating spindle • Resolution: 0.01mm/0.0001″ |
||||
| Specifications: | ||||
| CODE | RANGE | ACCURACY | Supplied with Anvils | |
| 10-138 | 0-25mm | ±0.004mm | F0101-F0105(60º) | |
| 10-139 | 25-50mm | ±0.004mm | F0102-F0106(60º) | |
| 10-1391 | 50-75mm | ±0.004mm | F0102-F0106(60º) | |
MEASUMAX Micrometer Head- Friction Spindle 0-25mm
| Features: Friction thimble for easy one hand use | |
| Resolution: 0.01mm | |
| CODE | 11-470 |
| RANGE | 0-25mm |
| ACCURACY | 0.002mm |
| MOUNTING SHOULDER | 12×17.5mm |
| O/A LENGTH | 113mm |
MEASUMAX Digital Moisture Meter
Description: Application: suitable to measure the moisture content in wood fiber materials, wooden articles, tobacco, cotton paper, building, soil and other fibre materials
Model: 50-7806
Features
MEASUMAX Digital Hardness Tester
Model: 50-5201
Weight: 0.10 KG
Dimensions: 15 x 8.5 x 4
MEASUMAX Refractometer 0-18 Brix
An industrial fluids testing device that will quickly and accurately measure the concentrate to water ratio of metal Working coolants, parts cleaners, chromating solutions and many other types of aqueous based solutions and emulsions.
Model: 70-670
Capacity: 0-18 Brix
Weight: 0.52 KG
Dimensions: 23 x 10 x 5
| Nominal values |
E1 ± mg |
E2 ± mg |
F1 ± mg |
F2 ± mg |
M1 ± mg |
M2 ± mg |
M3 ± mg |
| 20 kg | 10 | 30 | 100 | 300 | 1000 | 3000 | 10000 |
| 10 kg | 5.0 | 16 | 50 | 160 | 500 | 1600 | 5000 |
| 5 kg | 2.5 | 8.0 | 25 | 80 | 250 | 800 | 2500 |
| 2 kg | 1.0 | 3.0 | 10 | 30 | 100 | 300 | 1000 |
| 1 kg | 0.50 | 1.60 | 5.0 | 16 | 50 | 160 | 500 |
| 500 g | 0.25 | 0.80 | 2.5 | 8.0 | 25 | 80 | 250 |
| 200 g | 0.10 | 0.30 | 1.0 | 3.0 | 10 | 30 | 100 |
| 100 g | 0.050 | 0.160 | 0.50 | 1.6 | 5.0 | 16 | 50 |
| 50 g | 0.030 | 0.100 | 0.30 | 1.0 | 3.0 | 10 | 30 |
| 20 g | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | 8.0 | 25.0 |
| 10 g | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | 6.0 | 20.0 |
| 5 g | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | 5.0 | 16.0 |
| 2 g | 0.012 | 0.040 | 0.12 | 0.40 | 1.2 | 4.0 | 12.0 |
| 1 g | 0.010 | 0.030 | 0.10 | 0.30 | 1.0 | 3.0 | 10.0 |
| 500 mg | 0.008 | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | |
| 200 mg | 0.006 | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | |
| 100 mg | 0.005 | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | |
| 50 mg | 0.004 | 0.012 | 0.040 | 0.12 | 0.40 | ||
| 20 mg | 0.003 | 0.010 | 0.030 | 0.10 | 0.30 | ||
| 10 mg | 0.003 | 0.008 | 0.025 | 0.080 | 0.25 | ||
| 5 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 2 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 1 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 |
| Nominal values |
E1 ± mg |
E2 ± mg |
F1 ± mg |
F2 ± mg |
M1 ± mg |
M2 ± mg |
M3 ± mg |
| 20 kg | 10 | 30 | 100 | 300 | 1000 | 3000 | 10000 |
| 10 kg | 5.0 | 16 | 50 | 160 | 500 | 1600 | 5000 |
| 5 kg | 2.5 | 8.0 | 25 | 80 | 250 | 800 | 2500 |
| 2 kg | 1.0 | 3.0 | 10 | 30 | 100 | 300 | 1000 |
| 1 kg | 0.50 | 1.60 | 5.0 | 16 | 50 | 160 | 500 |
| 500 g | 0.25 | 0.80 | 2.5 | 8.0 | 25 | 80 | 250 |
| 200 g | 0.10 | 0.30 | 1.0 | 3.0 | 10 | 30 | 100 |
| 100 g | 0.050 | 0.160 | 0.50 | 1.6 | 5.0 | 16 | 50 |
| 50 g | 0.030 | 0.100 | 0.30 | 1.0 | 3.0 | 10 | 30 |
| 20 g | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | 8.0 | 25.0 |
| 10 g | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | 6.0 | 20.0 |
| 5 g | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | 5.0 | 16.0 |
| 2 g | 0.012 | 0.040 | 0.12 | 0.40 | 1.2 | 4.0 | 12.0 |
| 1 g | 0.010 | 0.030 | 0.10 | 0.30 | 1.0 | 3.0 | 10.0 |
| 500 mg | 0.008 | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | |
| 200 mg | 0.006 | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | |
| 100 mg | 0.005 | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | |
| 50 mg | 0.004 | 0.012 | 0.040 | 0.12 | 0.40 | ||
| 20 mg | 0.003 | 0.010 | 0.030 | 0.10 | 0.30 | ||
| 10 mg | 0.003 | 0.008 | 0.025 | 0.080 | 0.25 | ||
| 5 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 2 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 1 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 |
| Nominal values |
E1 ± mg |
E2 ± mg |
F1 ± mg |
F2 ± mg |
M1 ± mg |
M2 ± mg |
M3 ± mg |
| 20 kg | 10 | 30 | 100 | 300 | 1000 | 3000 | 10000 |
| 10 kg | 5.0 | 16 | 50 | 160 | 500 | 1600 | 5000 |
| 5 kg | 2.5 | 8.0 | 25 | 80 | 250 | 800 | 2500 |
| 2 kg | 1.0 | 3.0 | 10 | 30 | 100 | 300 | 1000 |
| 1 kg | 0.50 | 1.60 | 5.0 | 16 | 50 | 160 | 500 |
| 500 g | 0.25 | 0.80 | 2.5 | 8.0 | 25 | 80 | 250 |
| 200 g | 0.10 | 0.30 | 1.0 | 3.0 | 10 | 30 | 100 |
| 100 g | 0.050 | 0.160 | 0.50 | 1.6 | 5.0 | 16 | 50 |
| 50 g | 0.030 | 0.100 | 0.30 | 1.0 | 3.0 | 10 | 30 |
| 20 g | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | 8.0 | 25.0 |
| 10 g | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | 6.0 | 20.0 |
| 5 g | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | 5.0 | 16.0 |
| 2 g | 0.012 | 0.040 | 0.12 | 0.40 | 1.2 | 4.0 | 12.0 |
| 1 g | 0.010 | 0.030 | 0.10 | 0.30 | 1.0 | 3.0 | 10.0 |
| 500 mg | 0.008 | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | |
| 200 mg | 0.006 | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | |
| 100 mg | 0.005 | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | |
| 50 mg | 0.004 | 0.012 | 0.040 | 0.12 | 0.40 | ||
| 20 mg | 0.003 | 0.010 | 0.030 | 0.10 | 0.30 | ||
| 10 mg | 0.003 | 0.008 | 0.025 | 0.080 | 0.25 | ||
| 5 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 2 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 1 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 |
| Nominal values |
E1 ± mg |
E2 ± mg |
F1 ± mg |
F2 ± mg |
M1 ± mg |
M2 ± mg |
M3 ± mg |
| 20 kg | 10 | 30 | 100 | 300 | 1000 | 3000 | 10000 |
| 10 kg | 5.0 | 16 | 50 | 160 | 500 | 1600 | 5000 |
| 5 kg | 2.5 | 8.0 | 25 | 80 | 250 | 800 | 2500 |
| 2 kg | 1.0 | 3.0 | 10 | 30 | 100 | 300 | 1000 |
| 1 kg | 0.50 | 1.60 | 5.0 | 16 | 50 | 160 | 500 |
| 500 g | 0.25 | 0.80 | 2.5 | 8.0 | 25 | 80 | 250 |
| 200 g | 0.10 | 0.30 | 1.0 | 3.0 | 10 | 30 | 100 |
| 100 g | 0.050 | 0.160 | 0.50 | 1.6 | 5.0 | 16 | 50 |
| 50 g | 0.030 | 0.100 | 0.30 | 1.0 | 3.0 | 10 | 30 |
| 20 g | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | 8.0 | 25.0 |
| 10 g | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | 6.0 | 20.0 |
| 5 g | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | 5.0 | 16.0 |
| 2 g | 0.012 | 0.040 | 0.12 | 0.40 | 1.2 | 4.0 | 12.0 |
| 1 g | 0.010 | 0.030 | 0.10 | 0.30 | 1.0 | 3.0 | 10.0 |
| 500 mg | 0.008 | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | |
| 200 mg | 0.006 | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | |
| 100 mg | 0.005 | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | |
| 50 mg | 0.004 | 0.012 | 0.040 | 0.12 | 0.40 | ||
| 20 mg | 0.003 | 0.010 | 0.030 | 0.10 | 0.30 | ||
| 10 mg | 0.003 | 0.008 | 0.025 | 0.080 | 0.25 | ||
| 5 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 2 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 1 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 |
| Nominal values |
E1 ± mg |
E2 ± mg |
F1 ± mg |
F2 ± mg |
M1 ± mg |
M2 ± mg |
M3 ± mg |
| 20 kg | 10 | 30 | 100 | 300 | 1000 | 3000 | 10000 |
| 10 kg | 5.0 | 16 | 50 | 160 | 500 | 1600 | 5000 |
| 5 kg | 2.5 | 8.0 | 25 | 80 | 250 | 800 | 2500 |
| 2 kg | 1.0 | 3.0 | 10 | 30 | 100 | 300 | 1000 |
| 1 kg | 0.50 | 1.60 | 5.0 | 16 | 50 | 160 | 500 |
| 500 g | 0.25 | 0.80 | 2.5 | 8.0 | 25 | 80 | 250 |
| 200 g | 0.10 | 0.30 | 1.0 | 3.0 | 10 | 30 | 100 |
| 100 g | 0.050 | 0.160 | 0.50 | 1.6 | 5.0 | 16 | 50 |
| 50 g | 0.030 | 0.100 | 0.30 | 1.0 | 3.0 | 10 | 30 |
| 20 g | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | 8.0 | 25.0 |
| 10 g | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | 6.0 | 20.0 |
| 5 g | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | 5.0 | 16.0 |
| 2 g | 0.012 | 0.040 | 0.12 | 0.40 | 1.2 | 4.0 | 12.0 |
| 1 g | 0.010 | 0.030 | 0.10 | 0.30 | 1.0 | 3.0 | 10.0 |
| 500 mg | 0.008 | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | |
| 200 mg | 0.006 | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | |
| 100 mg | 0.005 | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | |
| 50 mg | 0.004 | 0.012 | 0.040 | 0.12 | 0.40 | ||
| 20 mg | 0.003 | 0.010 | 0.030 | 0.10 | 0.30 | ||
| 10 mg | 0.003 | 0.008 | 0.025 | 0.080 | 0.25 | ||
| 5 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 2 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 1 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 |
| Nominal values |
E1 ± mg |
E2 ± mg |
F1 ± mg |
F2 ± mg |
M1 ± mg |
M2 ± mg |
M3 ± mg |
| 20 kg | 10 | 30 | 100 | 300 | 1000 | 3000 | 10000 |
| 10 kg | 5.0 | 16 | 50 | 160 | 500 | 1600 | 5000 |
| 5 kg | 2.5 | 8.0 | 25 | 80 | 250 | 800 | 2500 |
| 2 kg | 1.0 | 3.0 | 10 | 30 | 100 | 300 | 1000 |
| 1 kg | 0.50 | 1.60 | 5.0 | 16 | 50 | 160 | 500 |
| 500 g | 0.25 | 0.80 | 2.5 | 8.0 | 25 | 80 | 250 |
| 200 g | 0.10 | 0.30 | 1.0 | 3.0 | 10 | 30 | 100 |
| 100 g | 0.050 | 0.160 | 0.50 | 1.6 | 5.0 | 16 | 50 |
| 50 g | 0.030 | 0.100 | 0.30 | 1.0 | 3.0 | 10 | 30 |
| 20 g | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | 8.0 | 25.0 |
| 10 g | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | 6.0 | 20.0 |
| 5 g | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | 5.0 | 16.0 |
| 2 g | 0.012 | 0.040 | 0.12 | 0.40 | 1.2 | 4.0 | 12.0 |
| 1 g | 0.010 | 0.030 | 0.10 | 0.30 | 1.0 | 3.0 | 10.0 |
| 500 mg | 0.008 | 0.025 | 0.080 | 0.25 | 0.80 | 2.5 | |
| 200 mg | 0.006 | 0.020 | 0.060 | 0.20 | 0.60 | 2.0 | |
| 100 mg | 0.005 | 0.016 | 0.050 | 0.16 | 0.50 | 1.6 | |
| 50 mg | 0.004 | 0.012 | 0.040 | 0.12 | 0.40 | ||
| 20 mg | 0.003 | 0.010 | 0.030 | 0.10 | 0.30 | ||
| 10 mg | 0.003 | 0.008 | 0.025 | 0.080 | 0.25 | ||
| 5 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 2 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 | ||
| 1 mg | 0.003 | 0.006 | 0.020 | 0.060 | 0.20 |
Luggage Scale
Value and Practicality for Weighing Luggage On The Go
| Model | Capacity | Readability | Pan Size |
| LS50 | 50 kg | 10 g | N/A |
CX Series
Designed with Energy Efficient Weighing in Mind for Workplace & In-the-Field Weighing
| Model | Capacity | Readability | Pan Size |
| CX221 | 220 g | 0.1 g | 128 x 142 mm |
| CX621 | 620 g | 0.1 g | 128 x 142 mm |
| CX1201 | 1200 g | 0.1 g | 128 x 142 mm |
| CX2200 | 2200 g | 1 g | 128 x 142 mm |
| CX5200 | 5200 g | 1 g | 128 x 142 mm |
Navigator® NVT
Rugged, Multi-Purpose Balances for a Wide Range of General Weighing ApplicationsPortable Balances
| Model | Capacity | Readability | Pan Size |
| NVT2201 | 2200 g | 0.1 g | 230 x 174 mm |
| NVT4201 | 4200 g | 0.1 g | 230 x 174 mm |
| NVT6201 | 6200 g | 0.1 g | 230 x 174 mm |
| NVT2200 | 2200 g | 1 g | 230 x 174 mm |
| NVT6200 | 6200 g | 1 g | 230 x 174 mm |
| NVT12000 | 12000 g | 1 g | 230 x 174 mm |
| NVT22000 | 22000 g | 1 g | 230 x 174 mm |
Navigator® NV
Rugged, Multi-Purpose Balances for a Wide Range of General Weighing Applications Portable Balances
| Model | Capacity | Readability | Pan Size |
| NV222 | 220 g | 0.01 g | Ø 145 mm |
| NV422 | 420 g | 0.01 g | Ø 145 mm |
| NV622 | 620 g | 0.01 g | Ø 145 mm |
| NV221 | 220 g | 0.1 g | 190 x 144 mm |
| NV621 | 620 g | 0.1 g | 190 x 144 mm |
| NV1201 | 1200 g | 0.1 g | 190 x 144 mm |
| NV2201 | 2200 g | 0.1 g | 190 x 144 mm |
Scout® Jewellery (SJX)
A Dynamic Weighing Experience with the Next Generation of OHAUS Carat and Gold Portable Balances
| Model | Capacity | Readability | Pan Size |
| SJX323 | 320 ct (64 g) | 0.005 ct (0.001 g) | Ø 93mm |
| SJX323/E | 320 ct (64 g) | 0.005 ct (0.001 g) | Ø 93mm |
| SJX322/E | 320 g | 0.01 g | Ø 120 mm |
| SJX622 | 620 g | 0.01 g | Ø 120 mm |
| SJX622/E | 620 g | 0.01 g | Ø 120 mm |
| SJX1502 | 1500 g | 0.01 g | 170 × 140 mm |
| SJX1502/E | 1500 g | 0.01 g | 170 × 140 mm |
| SJX621/E | 620 g | 0.1 g | 170 × 140 mm |
| SJX3201/E | 3200 g | 0.1 g | 170 × 140 mm |
| SJX6201 | 6200 g | 0.1 g | 170 × 140 mm |
| SJX6201/E | 6200 g | 0.1 g | 170 × 140 mm |
| SJX8200/E | 8200 g | 1 g | 170 × 140 mm |
Scout® Education (SKX)
The Next Generation for Education
| Model | Capacity | Readability | Pan Size |
| SKX123 | 120g | 0.001g | Ø 93 mm |
| SKX222 | 220g | 0.01g | Ø 93 mm |
| SKX422 | 420g | 0.01g | Ø 93 mm |
| SKX622 | 620g | 0.01g | Ø 120 mm |
| SKX1202 | 1200g | 0.01g | 170 × 140 mm |
| SKX2202 | 2200g | 0.01g | 170 × 140 mm |
| SKX421 | 420g | 0.1g | Ø 120 mm |
| SKX621 | 620g | 0.1g | 170 × 140 mm |
| SKX2201 | 2200g | 0.1g | 170 × 140 mm |
| SKX6201 | 6200g | 0.1g | 170 × 140 mm |
| SKX8200 | 8200g | 1g | 170 × 140 mm |
Scout® General (SPX)
The All New Scout Sets a New Standard in its Class!
| Model | Capacity | Readability | Pan Size |
| SPX123 | 120g | 0.001g | Ø 93 mm |
| SPX223 | 220g | 0.001g | Ø 93 mm |
| SPX222 | 220g | 0.01g | Ø 120 mm |
| SPX422 | 420g | 0.01g | Ø 120 mm |
| SPX622 | 620g | 0.01g | Ø 120 mm |
| SPX1202 | 1200g | 0.01g | 170 × 140 mm |
| SPX2202 | 2200g | 0.01g | 170 × 140 mm |
| SPX421 | 420g | 0.1g | Ø 120 mm |
| SPX621 | 620g | 0.1g | 170 × 140 mm |
| SPX2201 | 2200g | 0.1g | 170 × 140 mm |
| SPX6201 | 6200g | 0.1g | 170 × 140 mm |
| SPX8200 | 8200g | 1g | 170 × 140 mm |
Scout® Touch (STX)
Setting New Standards in Laboratory & Industrial Weighing—The Next Generation of Scout Balances
| Model | Capacity | Readability | Pan Size |
| STX123 | 120g | 0.001g | Ø93 mm |
| STX223 | 220g | 0.001g | Ø93 mm |
| STX222 | 220g | 0.01g | Ø120 mm |
| STX422 | 420g | 0.01g | Ø120 mm |
| STX622 | 620g | 0.01g | Ø120 mm |
| STX1202 | 1200g | 0.01g | 170 × 140 mm |
| STX2202 | 2200g | 0.01g | 170 × 140 mm |
| STX421 | 420g | 0.1g | Ø120 mm |
| STX621 | 620g | 0.1g | 170 × 140 mm |
| STX2201 | 2200g | 0.1g | 170 × 140 mm |
| STX6201 | 6200g | 0.1g | 170 × 140 mm |
| STX8200 | 8200g | 1g | 170 × 140 mm |
P3 4FSJFT
FTJHOFE GPS 3PVUJOF 8FJHIJOH “QQMJDBUJPOT
| Model | Capacity | Readability | Pan Size |
| PR124 | 120 g | 0.1 mg | Ø 90 mm |
| PR124/E | 120 g | 0.1 mg | Ø 90 mm |
| PR224 | 220 g | 0.1 mg | Ø 90 mm |
| PR224/E | 220 g | 0.1 mg | Ø 90 mm |
| PR423/E | 420 g | 1 mg | Ø 120 mm |
| PR523/E | 520 g | 1 mg | Ø 120 mm |
| PR1602/E | 1600 g | 0.01 g | Ø 180 mm |
| PR2202/E | 2200 g | 0.01 g | Ø 180 mm |
| PR4202/E | 4200 g | 0.01 g | Ø 180 mm |
| PR4201/E | 4200 g | 0.1 g | Ø 180 mm |
| PR6201/E | 6200 g | 0.1 g | Ø 180 mm |
| E = External Calibration | |||
Pioneer® Precision
The Economical Choice for Everyday Weighing
| Model | Capacity | Readability | Pan Size |
| PX223/E | 220 g | 1 mg | Ø 120 mm |
| PX223 | 220 g | 1 mg | Ø 120 mm |
| PX423/E | 420 g | 1 mg | Ø 120 mm |
| PX423 | 420 g | 1 mg | Ø 120 mm |
| PX523/E | 520 g | 1 mg | Ø 180 mm |
| PX523 | 520 g | 1 mg | Ø 180 mm |
| PX2202/E | 2200 g | 0.01 g | Ø 180 mm |
| PX2202 | 2200 g | 0.01 g | Ø 180 mm |
| PX3202/E | 3200 g | 0.01 g | Ø 180 mm |
| PX3202 | 3200 g | 0.01 g | Ø 180 mm |
| PX4202/E | 4200 g | 0.01 g | Ø 180 mm |
| PX4202 | 4200 g | 0.01 g | Ø 180 mm |
| PX5202/E | 5200 g | 0.01 g | Ø 180 mm |
| PX5202 | 5200 g | 0.01 g | Ø 180 mm |
| PX2201/E | 2200 g | 0.1 g | Ø 180 mm |
| PX2201 | 2200 g | 0.1 g | Ø 180 mm |
| PX4201/E | 4200 g | 0.1 g | Ø 180 mm |
| PX4201 | 4200 g | 0.1 g | Ø 180 mm |
| PX6201/E | 6200 g | 0.1 g | Ø 180 mm |
| PX8201/E | 8200 g | 0.1 g | Ø 180 mm |
| E = External Calibration | |||
Pioneer® Analytical
The Economical Choice for Everyday Weighing
| Model | Capacity | Readability | Pan Size |
| PX84/E | 82 g | 0.1 mg | Ø 90 mm |
| PX84 | 82 g | 0.1 mg | Ø 90 mm |
| PX124/E | 120 g | 0.1 mg | Ø 90 mm |
| PX124 | 120 g | 0.1 mg | Ø 90 mm |
| PX224/E | 220 g | 0.1 mg | Ø 90 mm |
| PX224 | 220 g | 0.1 mg | Ø 90 mm |
| E = External Calibration | |||
Pioneer® Semi-Micro
The Economical Choice for Everyday Weighing
| Model | Capacity | Readability | Pan Size |
| PX125D | 52 g; 120 g | 0.01 mg; 0.1 mg | Ø 80 mm |
| PX85 | 82 g | 0.01 mg | Ø 80 mm |
| PX225D | 82 g; 220 g | 0.01 mg; 0.1 mg | Ø 80 mm |
| D = Dual Range | |||
Adventurer® Precision
Ready For Your Lab, Wherever That May Be
| Model | Capacity | Readability | Trade Approved Readability | Pan Size |
| AX223 | 220 g | 1 mg | 0.01 g | Ø 130 mm |
| AX223/E | 220 g | 1 mg | Ø 130 mm | |
| AX423 | 420 g | 1 mg | 0.01 g | Ø 130 mm |
| AX423/E | 420 g | 1 mg | Ø 130 mm | |
| AX523 | 520 g | 1 mg | 0.01 g | Ø 130 mm |
| AX523/E | 520 g | 1 mg | Ø 130 mm | |
| AX622 | 620 g | 0.01 g | Ø 130 mm | |
| AX622/E | 620 g | 0.01 g | Ø 130 mm | |
| AX1502 | 1520 g | 0.01 g | 0.1 g | 195 mm x 175 mm |
| AX1502/E | 1520 g | 0.01 g | 195 mm x 175 mm | |
| AX2202 | 2200 g | 0.01 g | 0.1 g | 195 mm x 175 mm |
| AX2202/E | 2200 g | 0.01 g | 195 mm x 175 mm | |
| AX4202 | 4200 g | 0.01 g | 0.1 g | 195 mm x 175 mm |
| AX4202/E | 4200 g | 0.01 g | 195 mm x 175 mm | |
| AX5202 | 5200 g | 0.01 g | 0.1 g | 195 mm x 175 mm |
| AX4201 | 4200 g | 0.1 g | 195 mm x 175 mm | |
| AX4201/E | 4200 g | 0.1 g | 195 mm x 175 mm | |
| AX8201 | 8200 g | 0.1 g | 1 g | 195 mm x 175 mm |
| AX8201/E | 8200 g | 0.1 g | 195 mm x 175 mm | |
| E = External Calibration | ||||
Adventurer® Analytical
Ready For Your Lab, Wherever That May Be
| Model | Capacity | Readability | Pan Size | Trade Approved Readability |
| AX124 | 120 g | 0.1 mg | Ø 90 mm | 0.001 g |
| AX124/E | 120 g | 0.1 mg | Ø 90 mm | – |
| AX224 | 220 g | 0.1 mg | Ø 90 mm | 0.001 g |
| AX224/E | 220 g | 0.1 mg | Ø 90 mm | – |
| AX324 | 320 g | 0.1 mg | Ø 90 mm | 0.001 g |
| E = External Calibration | ||||
